A direct replacement part that offers increases in performance and response, the enlarged turbo inlet elbow features a freer-flowing design with an increased internal diameter.
AIRTEC Part No: ATMSYGR08
As part of our expanding Yaris GR product range, AIRTEC Motorsport is proud to launch our enlarged turbo inlet elbow upgrade suitable for track or fast road use.
A direct replacement part that offers increases in performance and response, the enlarged turbo inlet elbow features a freer-flowing design with an increased internal diameter.
How it works
The original elbow gradually tapers down from the 63mm induction pipe to just 48.5mm as it enters the turbo, despite the turbo’s inlet measuring 51mm in diameter. This causes an unnecessary restriction within the intake side that hampers flow and limits throttle response.

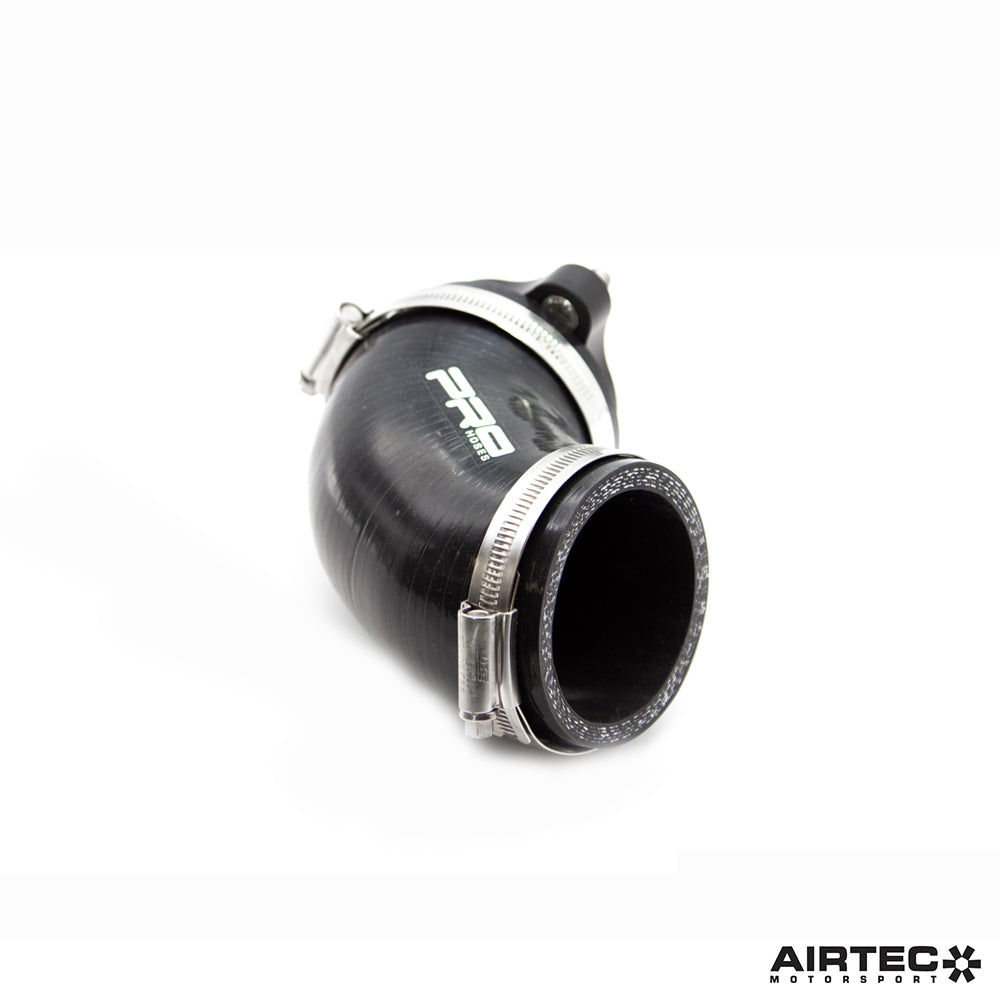

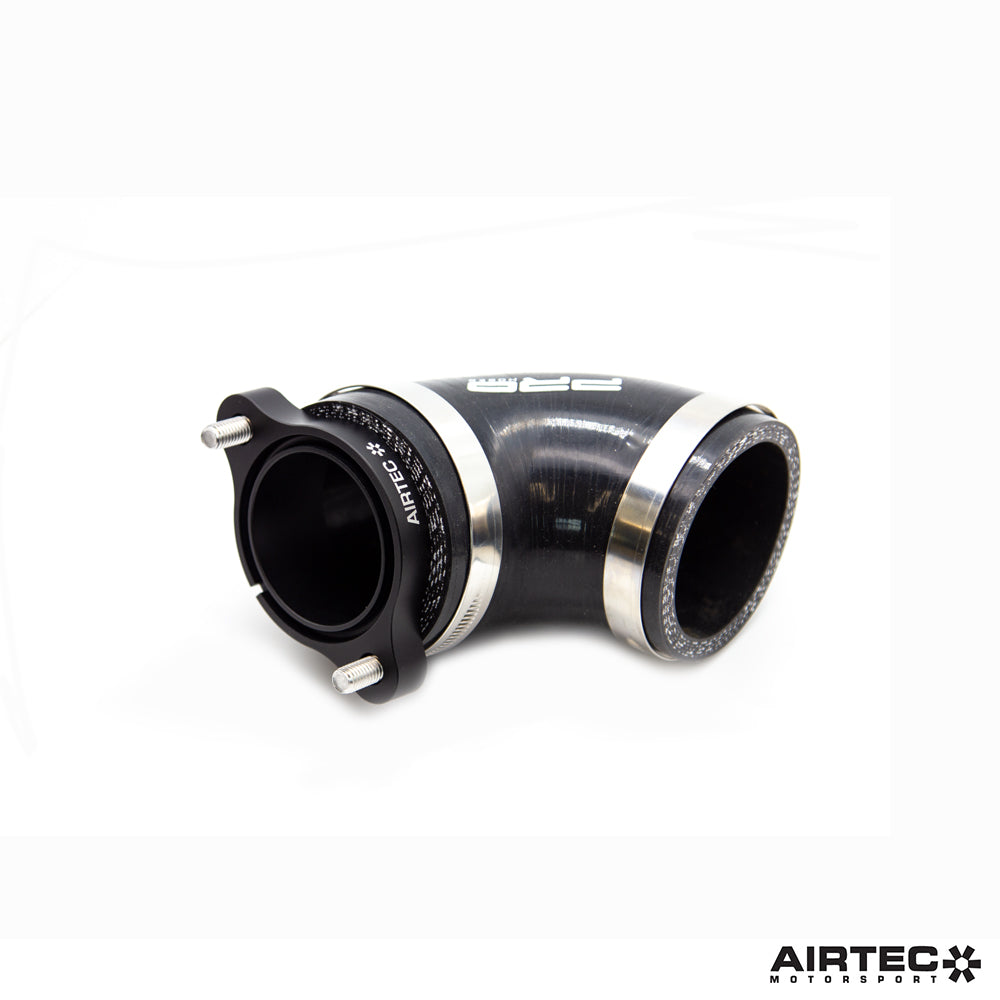

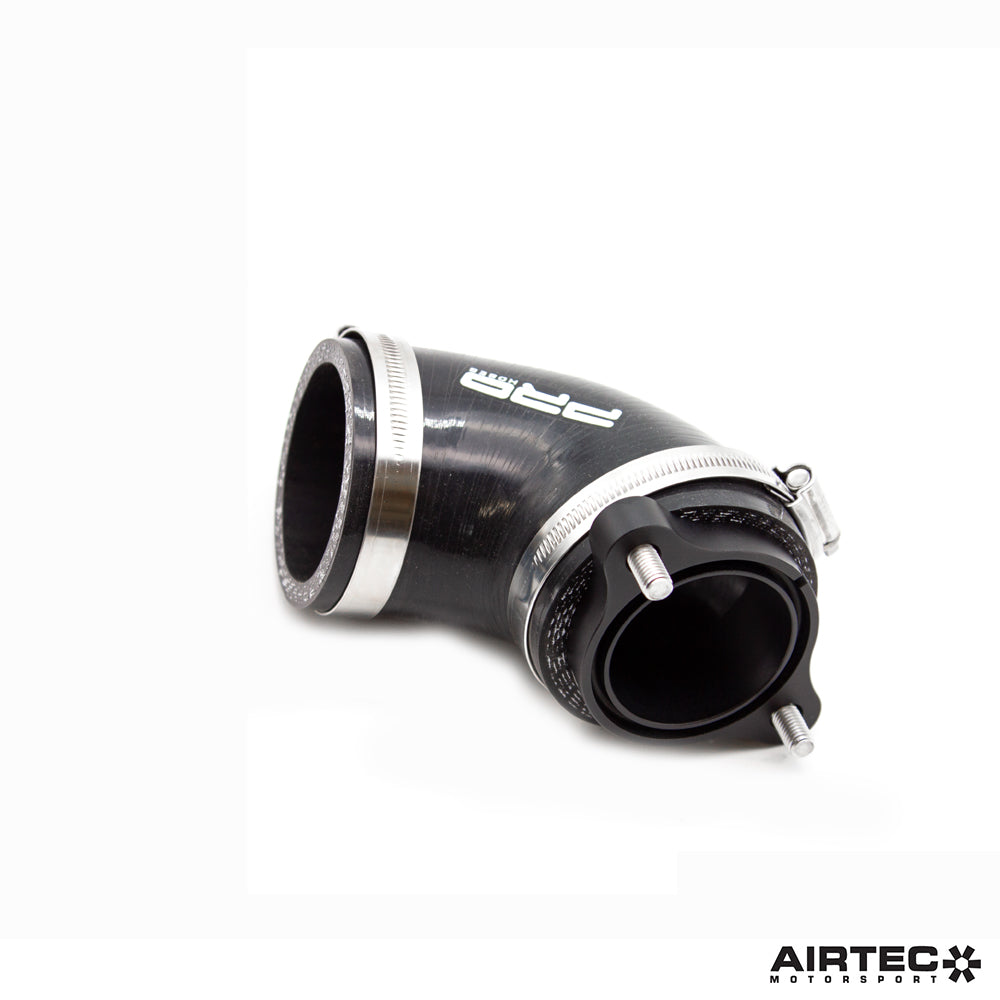

Our AIRTEC Motorsport direct replacement elbow features a CNC-machined flange with a correctly matched 51mm diameter, therefore removing the stepped restriction. The high-quality silicone hose instantly tapers to meet the 63mm diameter intake, therefore allowing the maximum amount of internal flow with increases of nearly 10%.

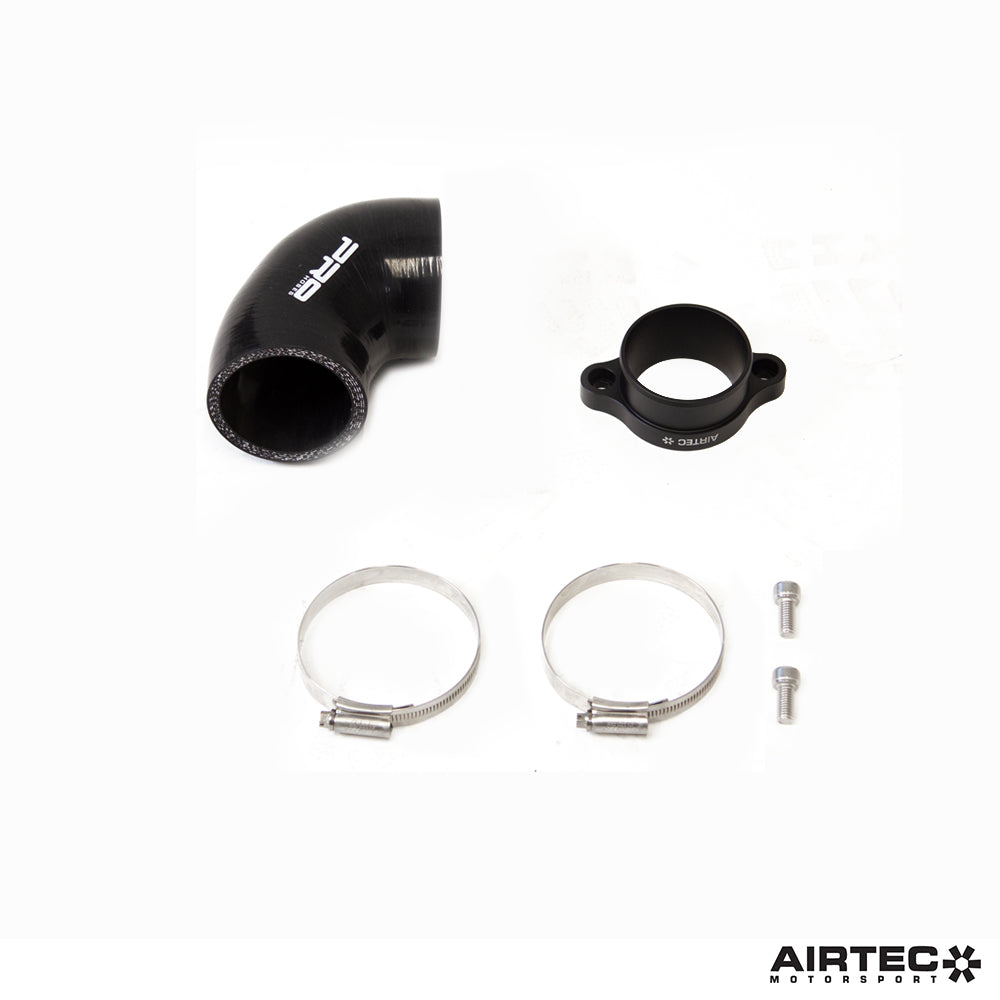

The elbow upgrade includes all fixtures and fittings, as well as detailed instructions.
The increased volume and improved design works to reduce restriction and improve flow to the turbo, providing an increase in power and response.
Please note: this part will not fit with a Turbosmart uprated blow-off valve in place.
Specification:
AIRTEC Part No: ATMSYGR08
You can write any text to be displayed either here if you want it to show on all products or create a custom metafield for products where you can add text information specific for each product.
| Part | Size | Diameter | Width | Height | Weight |
|---|---|---|---|---|---|
| Car Tire | 17" | 215 mm | 17" | 25" | 8 kg |
| Alloy Wheel | 18" | 225 mm | 18" | 24" | 7.5 kg |
| Brake Disc | 12" | 280 mm | 12" | 15" | 3 kg |
| Exhaust Pipe | Standard | 200 mm | 150 mm | 40" | 5 kg |
$132.00
