TECHNICAL DATA

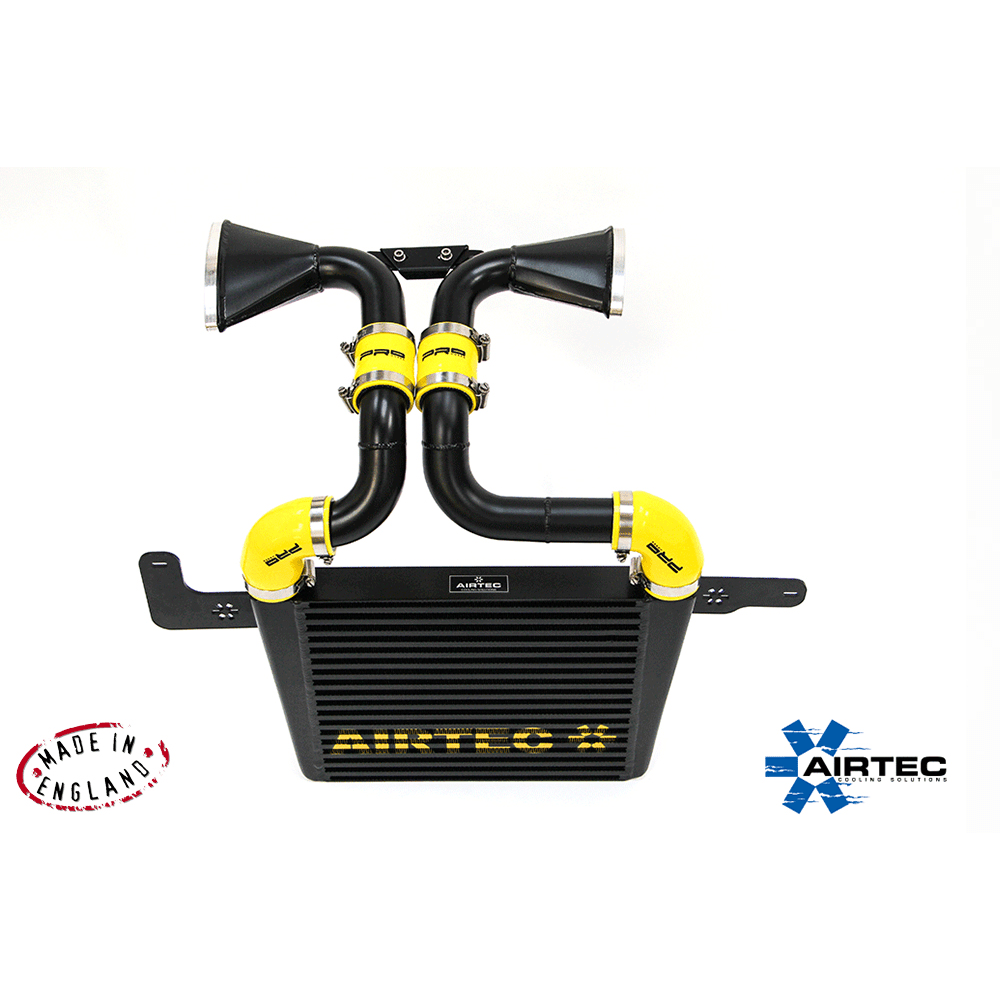

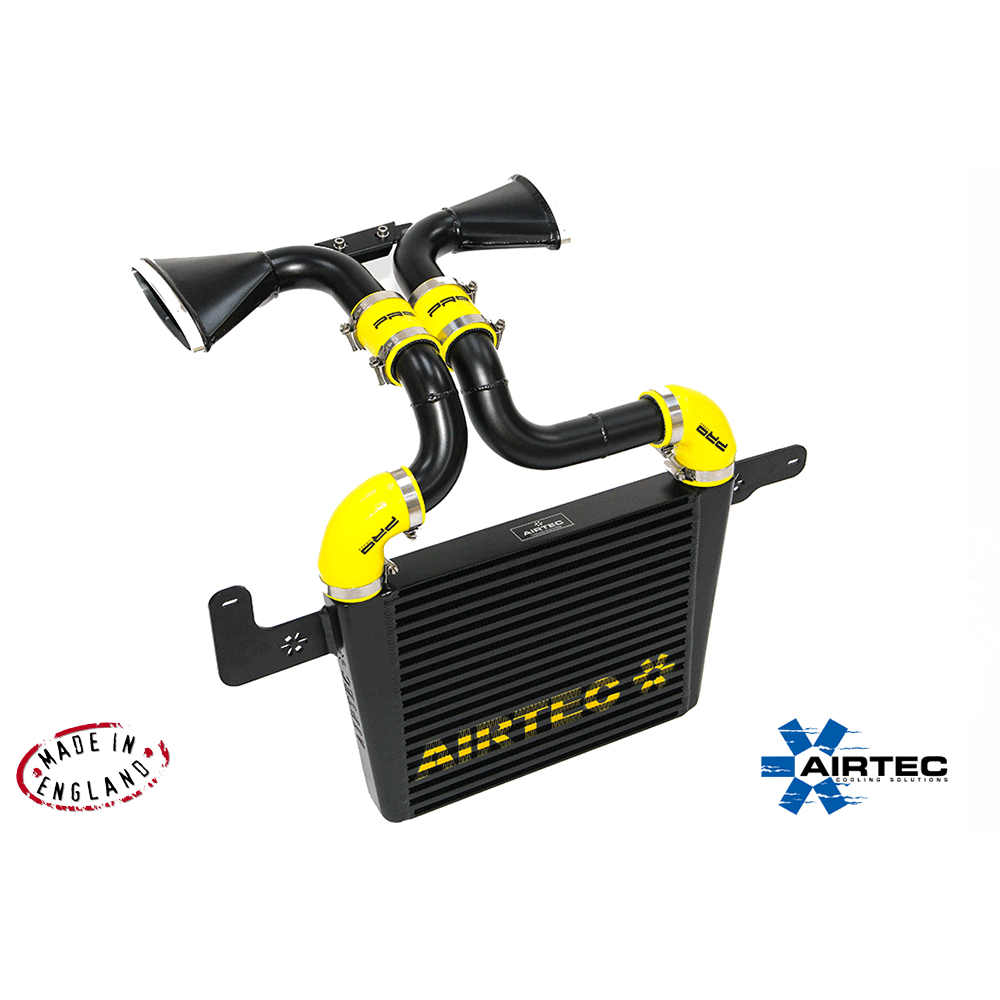

AIRTEC has now added a great addition to it’s growing range of performance intercoolers, in the way of this smart front mount intercooler for the Mini R53
Great addition to any Mini R53
Features
- 50mm thick track proven bar and plate core, spec’d to AIRTEC design
- AIRTEC Cast end tanks for improved Airflow and unbeatable strength

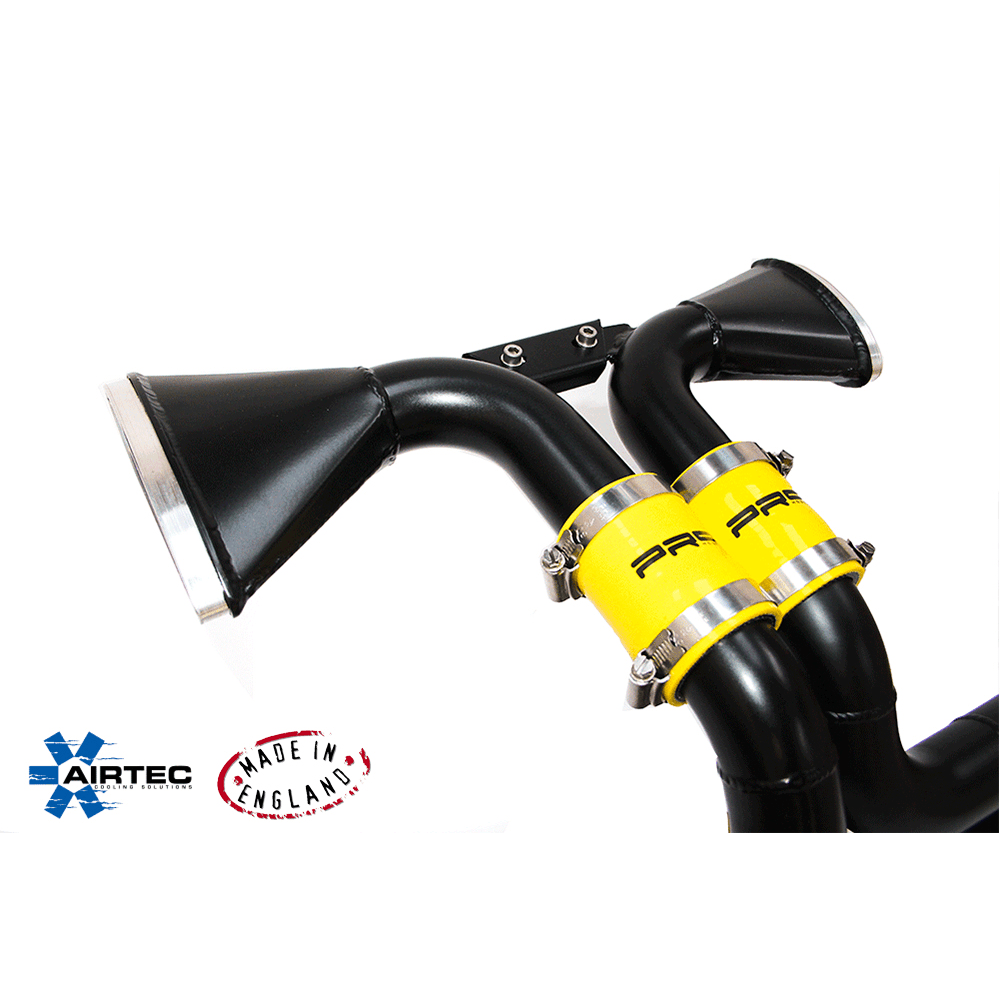

- Comes with silicone and alloy boost pipe connecting hoses – includes stainless clips
- Fitting takes 3-4 hours
- 3 year unlimited mileage warranty
- Only available in Pro-Series Black
- AIRTEC Logo available for no extra charge
Huge surface area whilst still allowing plenty of airflow to top section of the radiator, essential for hotter climate countries.

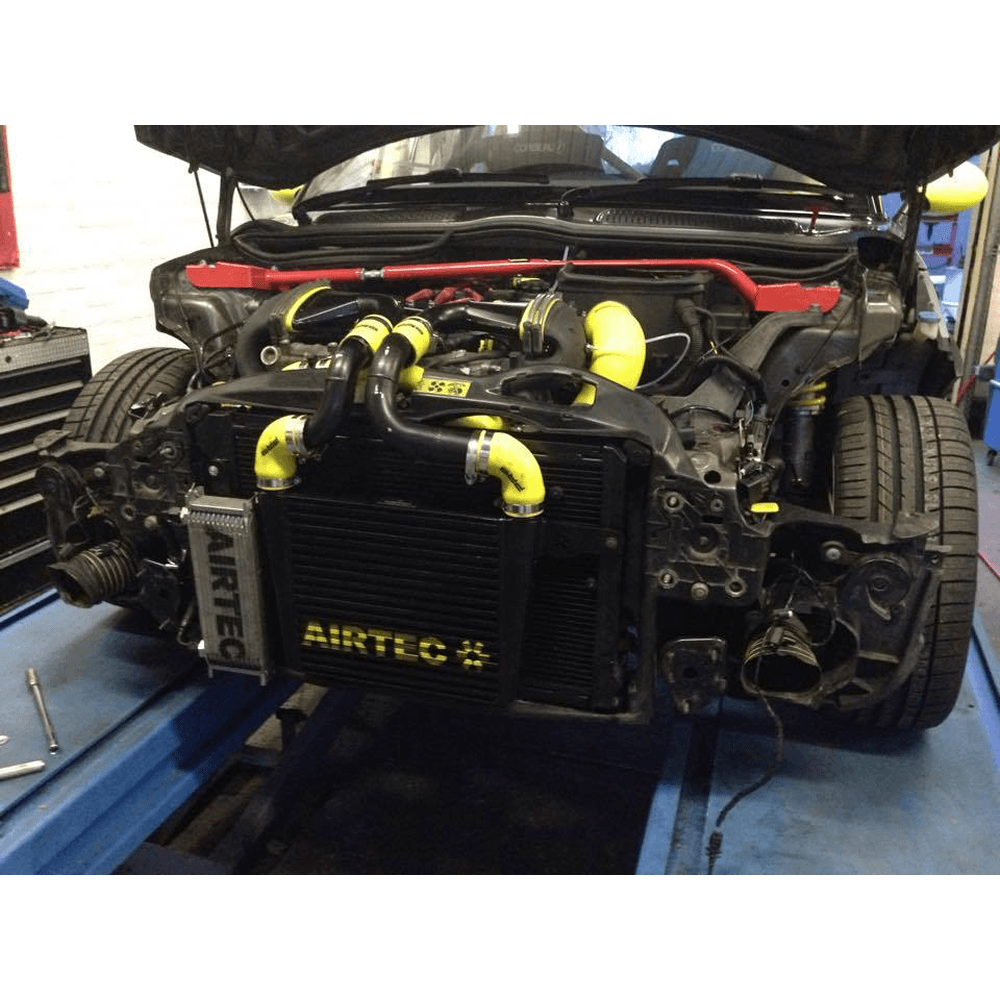

Please note: This kit is a custom install and will require the air-con to be removed & some minor cutting under the bonnet.
This intercooler is only available in Pro-Series Black.
WILL NOT FIT WITH AIRTEC OIL COOLER KIT
Approximate dimensions:
Core thickness 50mm
Total height 340mm ‘including 40mm pipes’
Width 440mm
Pipe diameter used 45mm o.d.
Hose colour shown for illustraion purposes only
Registered Design Right number: 6030023
AIRTEC part no: ATINTMINI03
