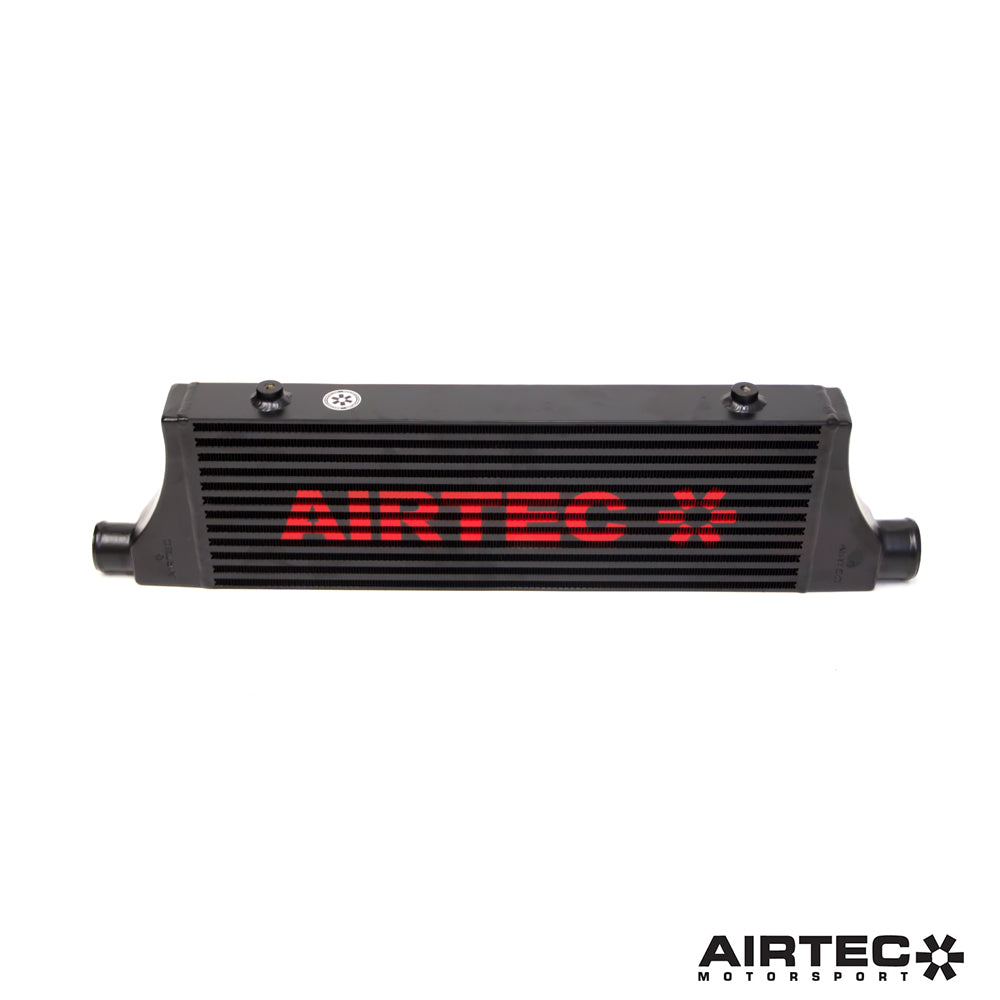

AIRTEC FIAT 500 ABARTH 60MM CORE INTERCOOLER UPGRADE (AUTOMATIC GEARBO

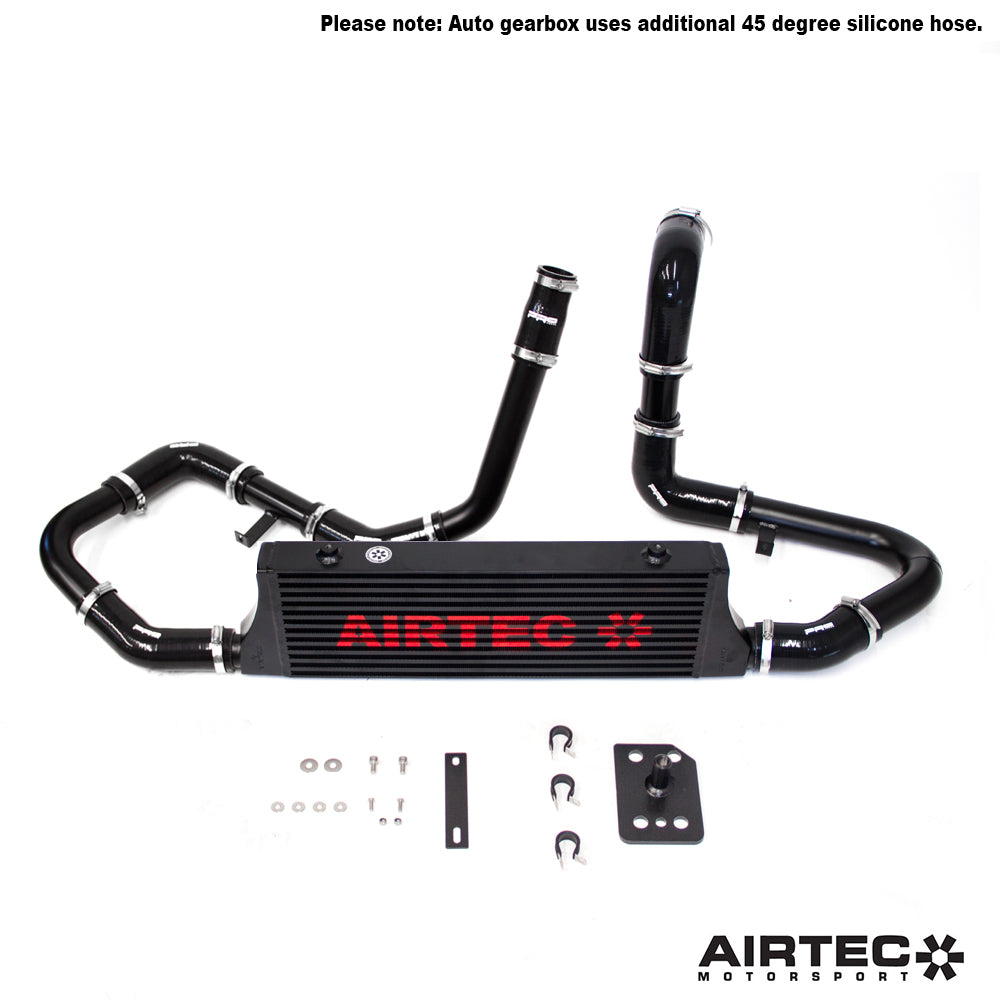

Replaces very restrictive original twin intercooler setup with lengthy pipework, with an AIRTEC design high flow 60mm core intercooler and a shorter alloy boost pipe kit. We keep fast turbo spool up by using 50mm pipework from turbo to intercooler and 60mm out of the intercooler to help match the throttle body, this combination gives fast turbo spool up coupled with maximum power output.

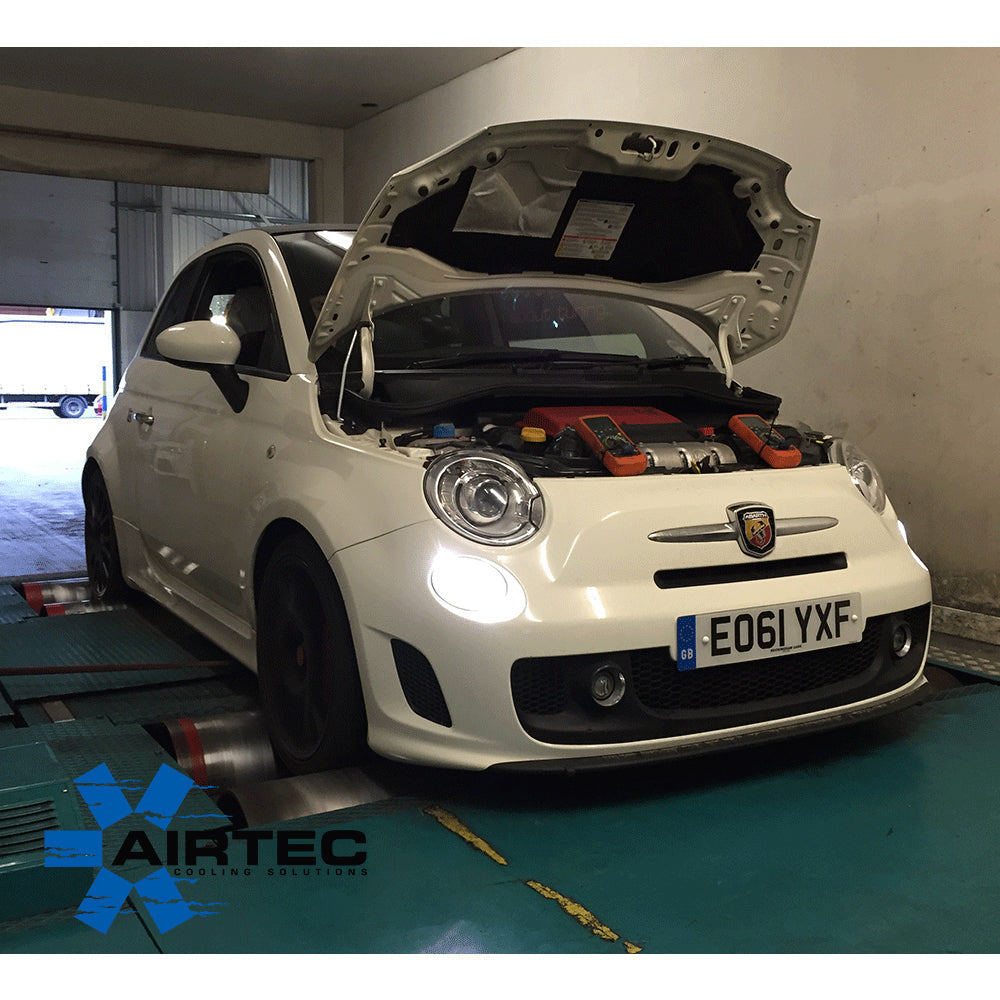

Dyno test results – results taken from Fiat 500 Abarth, fitted with cat back exhaust and AIRTEC FMIC

• Run 1.  120 degree into the intercooler and 22 degree out of the intercooler
• Run 2.  122 degree into the intercooler and 22 degree out of the intercooler
• Run 3.  123 degree into the intercooler and 22 degree out of the intercooler

The AIRTEC intercooler dropped the intake temperatures by 100 degree on each run and did not suffer from heat soak

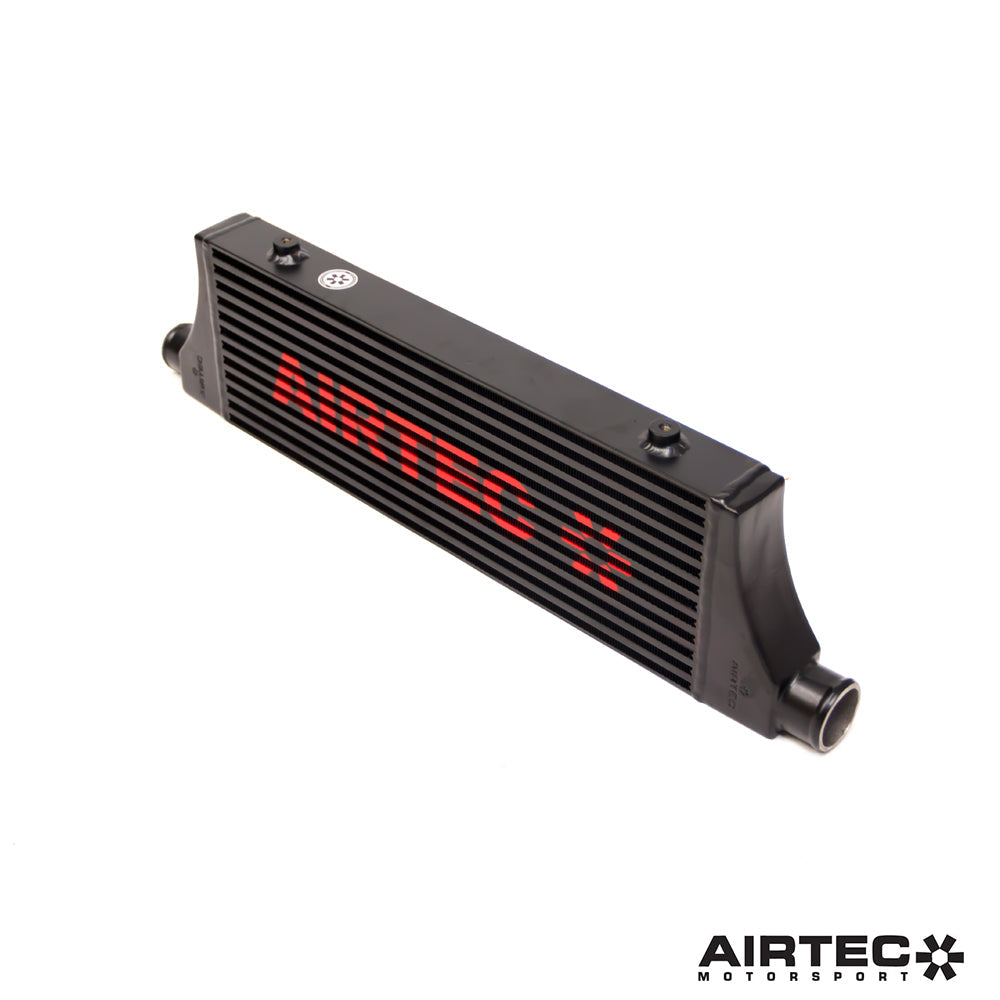

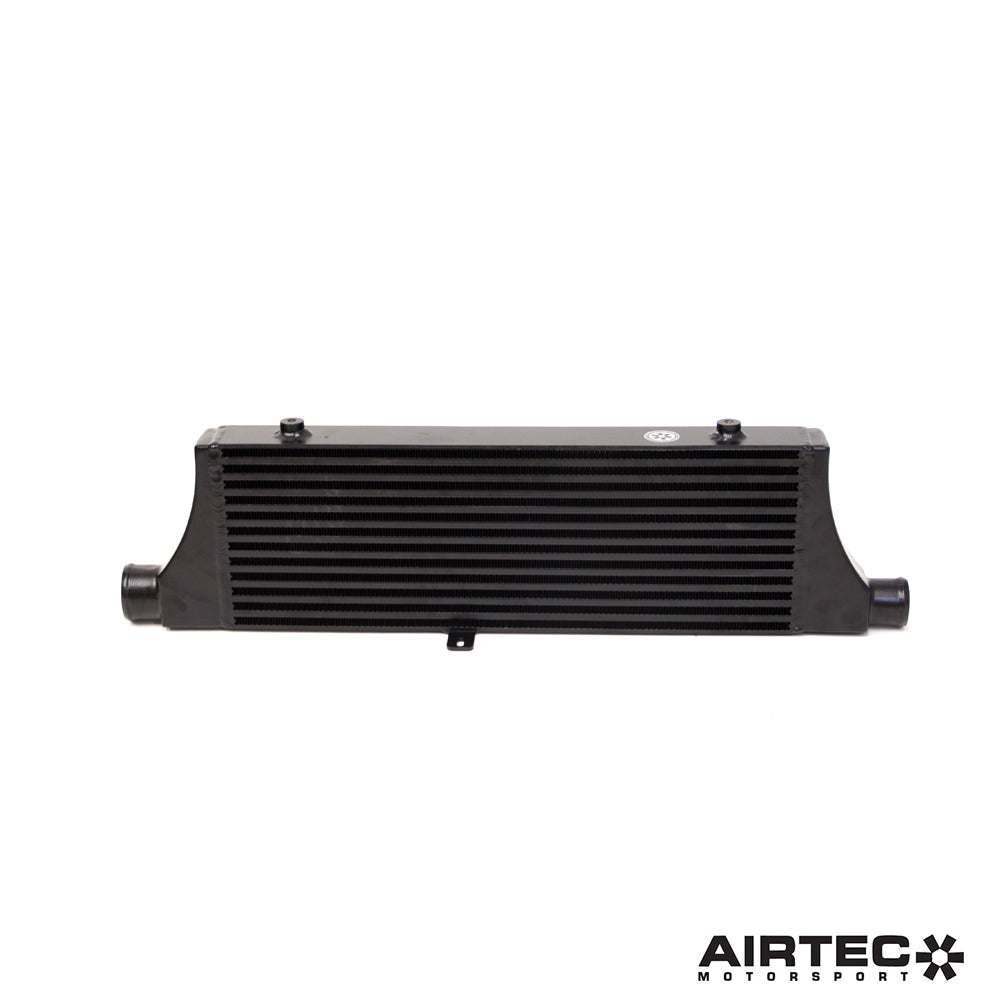

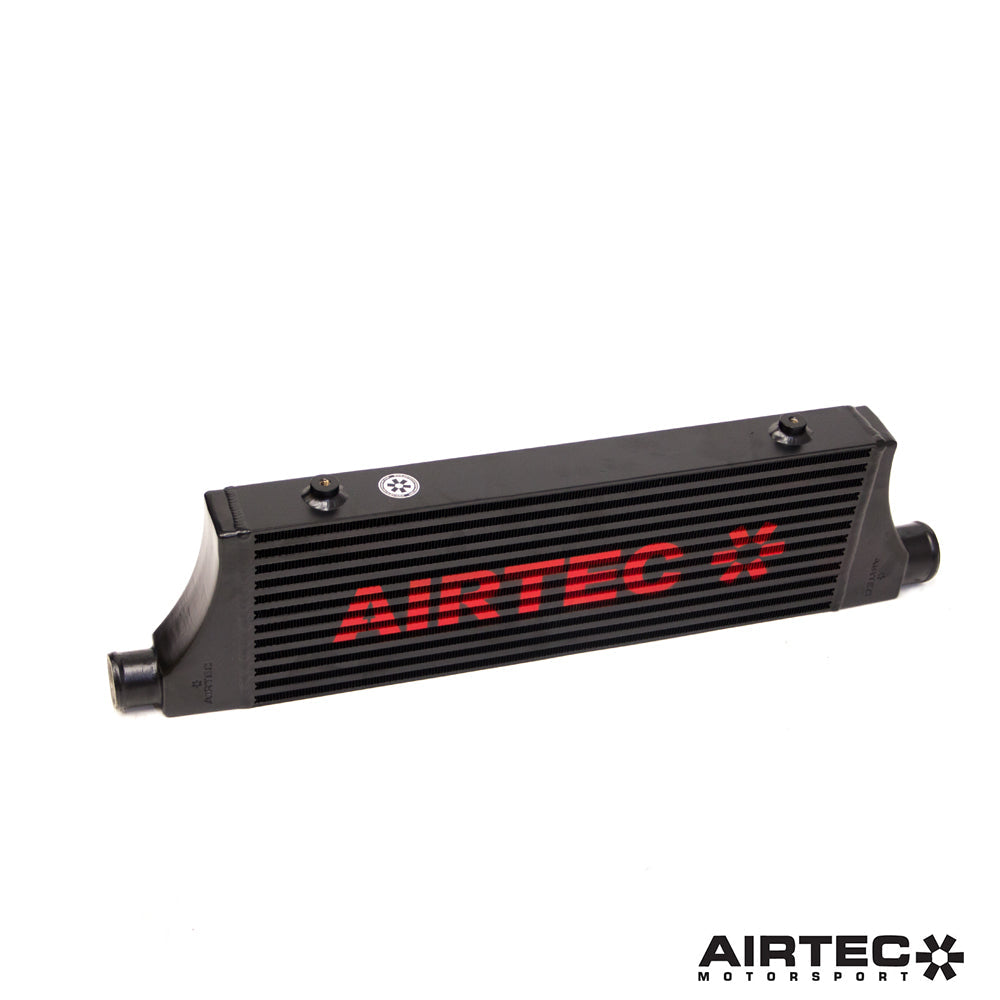

•     60mm thick proven bar and plate core, spec’d to AIRTEC design
•     AIRTEC branded cast end tanks for improved air flow and unbeatable strength
•     Dyno proven to provide lower intake temps and gain BHP

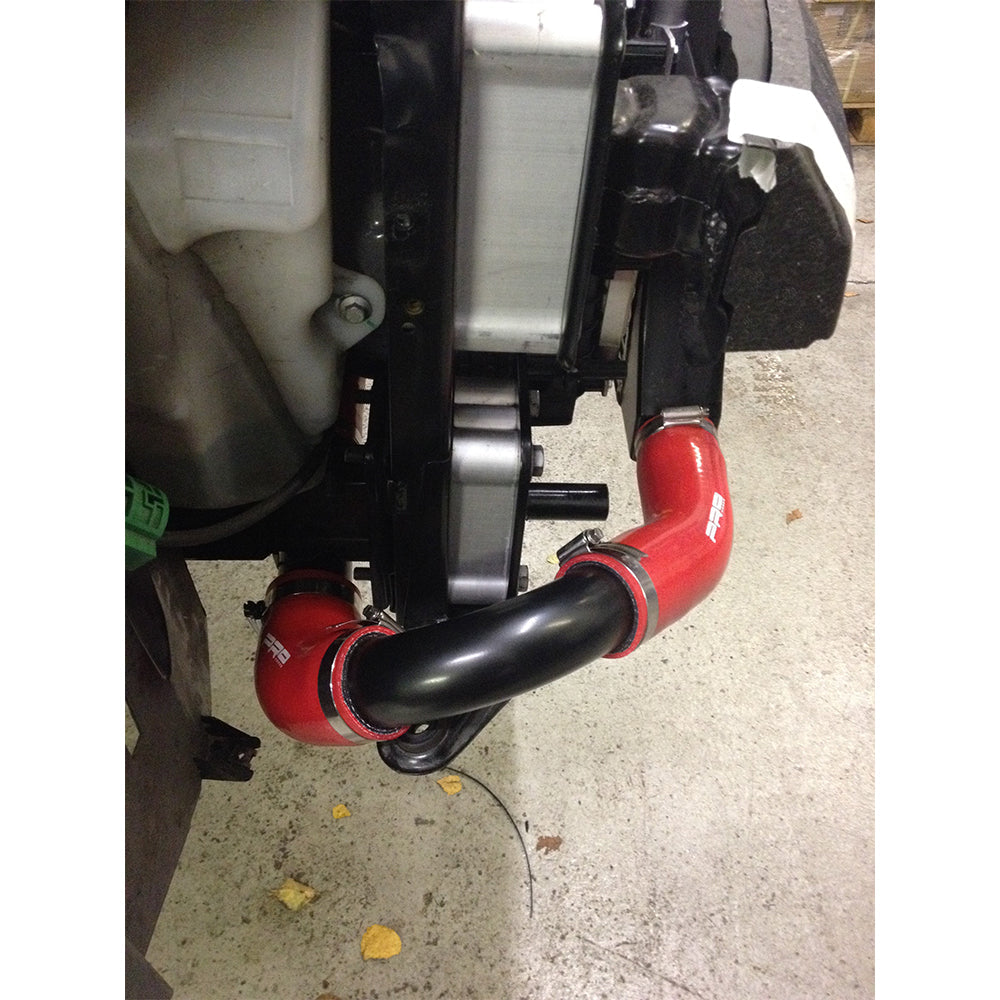

•     Shorter charge pipes than standard twin intercooler set-up, shorter pipes mean faster turbo spool up
•     Fitting takes approximately 2-3 hours
•     3 year unlimited mileage warranty
•     Available in Pro-Series Black
•     AIRTEC Logo available at no extra charge
•     Unbeatable value for money

Will fit Abarth 500 / 595 models fitted with the IHI turbo – 135, 140, 145 & 160 bhp models

Approximate dimensions:

Height – 205mm

Width – 820mm

Depth – 65mm

Registered Design Right number 6023445

This intercooler will fit with the automatic paddle shift gearbox on the Fiat 500 Abarth
